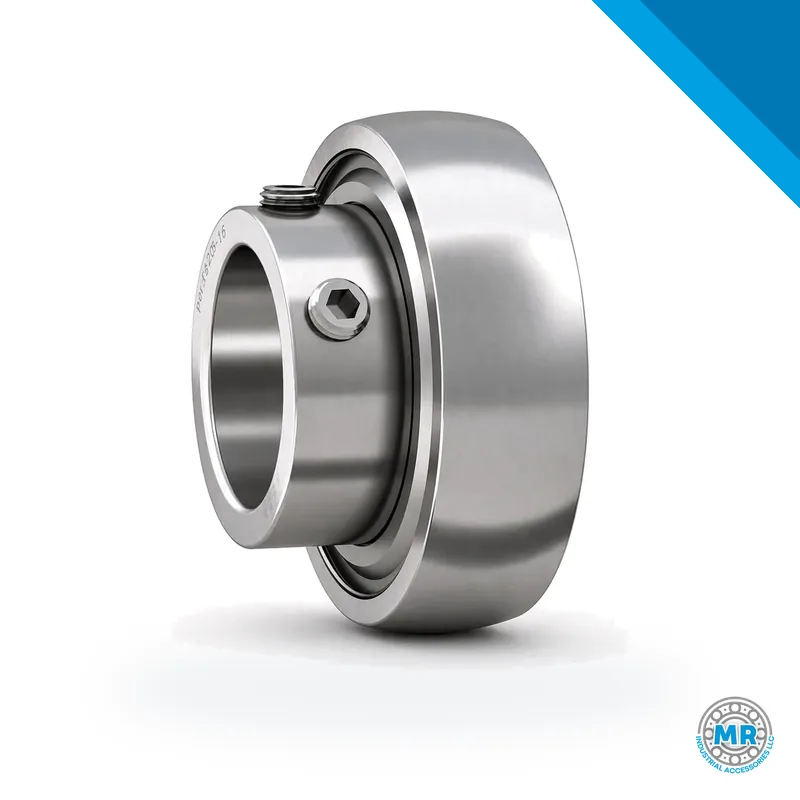

SKF PER.FHS205-16 y-bearing (insert bearing)
- Brand
- SKF
- Category
- Bearings
- Subcategory
- Y-bearing (insert bearing)
We reply promptly.
Tell us the quantity you need and request a quote by WhatsApp or email.
Other brands for this category
Ask us for alternatives. We check every equivalent against the part number and your application.
Can't find the exact model? Tell us the part number or model you need. We'll track it down and quote it, whether or not it appears in our catalog.
Description
SKF PER.FHS205-16 belongs to y-bearing (insert bearing), part of our Bearings range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for PER.FHS205-16 and any equivalents.
SKF PER.FHS Y-bearings are insert bearings that lock to the shaft with set screws. They mount in split plummer block housings or pillow blocks, and they tolerate the slight misalignment common in driven equipment. Because the bearing is sealed, it can operate where dust or moderate humidity is present. MR Industrial Accessories supplies this line for replacements in conveyors, mixers and similar machinery.
Reading the code helps you order the right part. PER.FHS is the SKF series designation; the letters cover the locking method and the sealing arrangement. The number that follows, for example 205-16 in PER.FHS205-16, gives the bore size and mounting variant. In that example the bore is 1 inch. When replacing a bearing, match the full part number rather than only the bore size.
These inserts are common in conveyors, belts, elevators, mixers and process equipment. Plants in food processing, chemicals and logistics favor them because they install and remove quickly. The sealed design handles dusty or lightly splashed areas as long as the manufacturer's operating limits are respected. For heavily contaminated spots, an extra seal is worth considering.
Selection comes down to three things: shaft diameter, load type and the environment. Set screw locking needs a ground shaft held to the correct tolerance, otherwise the insert can slip. Choose the seal according to how dirty the area is. Many of these bearings are lubricated for life, though severe duty may call for relubrication. Aligning the housing properly also helps you get the most from the bearing.
Y-bearings from different brands can often be swapped when the key dimensions, locking style and sealing match. Suffixes, however, do not carry the same meaning across manufacturers. For an equivalent, compare bore, outer diameter and width, plus the locking method. SKF is one of the brands MR Industrial Accessories supplies, so we can help you check that a replacement fits your equipment.
To replace a PER.FHS Y-bearing, send the complete part number by WhatsApp or email. The team at MR Industrial Accessories helps you confirm the reference and prepare a quote, and can suggest equivalents or assist with the selection.
Dimensions
Dimensions and tolerances: Message us the part number on WhatsApp and we'll verify its dimensions and version with the manufacturer's datasheet.
Frequently asked questions
- How do I identify the Y-bearing I need?
- Note the full part number stamped on the original bearing, letters and numbers included. If it is worn or unreadable, measure the shaft diameter, outer diameter and width. Send those measurements and a photo, and we can help you find the equivalent reference.
- What does the PER.FHS series mean?
- PER.FHS is an SKF designation for Y-bearings that use screw locking and a particular seal. The number after it indicates bore size and mounting variants. It is not a universal code, since each manufacturer has its own nomenclature.
- Is this bearing suitable for dusty environments?
- Yes, the sealed design protects against dust and moderate splashes. In highly contaminated areas, consider an additional seal or ask us about alternatives with greater protection. The right choice depends on your equipment's specific conditions.
