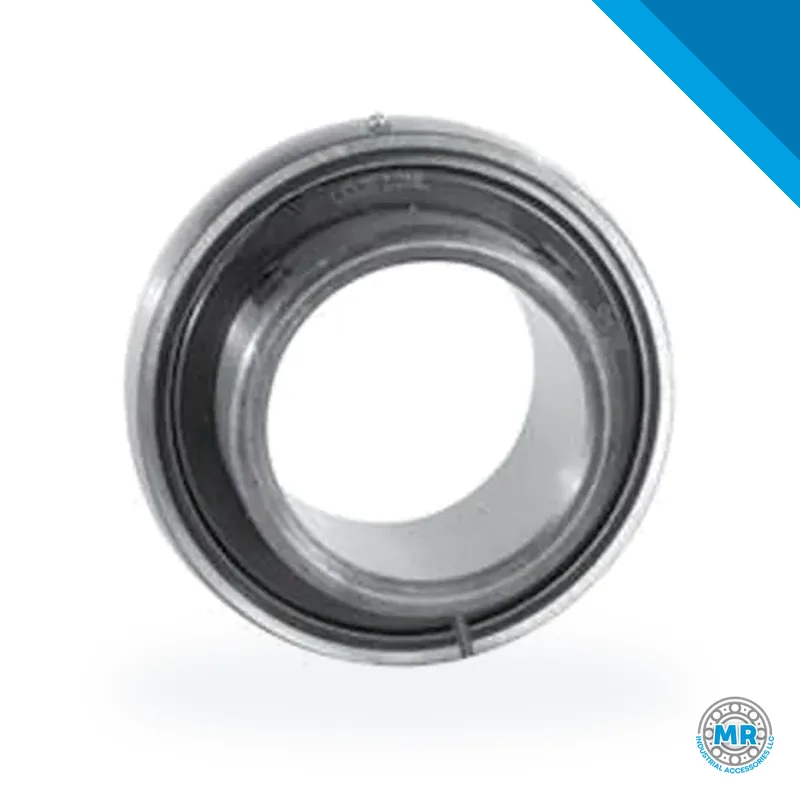

LINK-BELT UBG2B08NL insert bearing

LINK-BELT UBG2B08NL belongs to insert bearing, part of our Bearings range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for UBG2B08NL and any equivalents.

The LINK-BELT 200 series insert bearing is a ball bearing with an extended inner ring and a locking mechanism, intended for split or solid housings. It suits transmission and conveying equipment where quick mounting and removal matter. MR supplies this line and helps you match the correct variant to your application.

The part number is built in sections. The prefix UBG denotes the insert family, the number 2 is the diameter series, and the letter B specifies the locking type. The suffix NL shows the sealing, and the final characters vary with shaft diameter and mounting options. For instance, UBG2B08NL*■ combines series 200, locking B, sealing NL, and shaft diameter 08. To order the exact bearing, provide the complete designation from your equipment.

Typical uses include belt conveyors, bucket elevators, mixers, mills, and process equipment in food, chemical, and aggregate plants. The 200 series covers shaft diameters common in medium transmission equipment, and split housing mounting simplifies replacement without dismantling the entire shaft.

When selecting the insert, consider shaft diameter, locking type (set screw, eccentric, or adapter), and the sealing needed for the environment: dust, water, or washdown. NL sealing guards against contaminants and keeps lubrication in place. During mounting, verify housing alignment and axial clearance; misalignment speeds up wear. Factory lubrication is generally adequate, but in demanding applications it is wise to check the lubricant condition.

The 200 series inserts have cross-references among manufacturers: brands use their own nomenclatures, yet mounting dimensions usually match within the same series. To replace an insert bearing, compare shaft diameter, inner ring width, and locking type. We will point you to the compatible alternative for your part number.

To request a quote for the LINK-BELT insert bearing you need, send the full part number from the equipment or a photo of the nameplate via WhatsApp. We will reply promptly with the suitable variant and a compatible alternative if required. We can also advise on the housing and mounting accessories.
