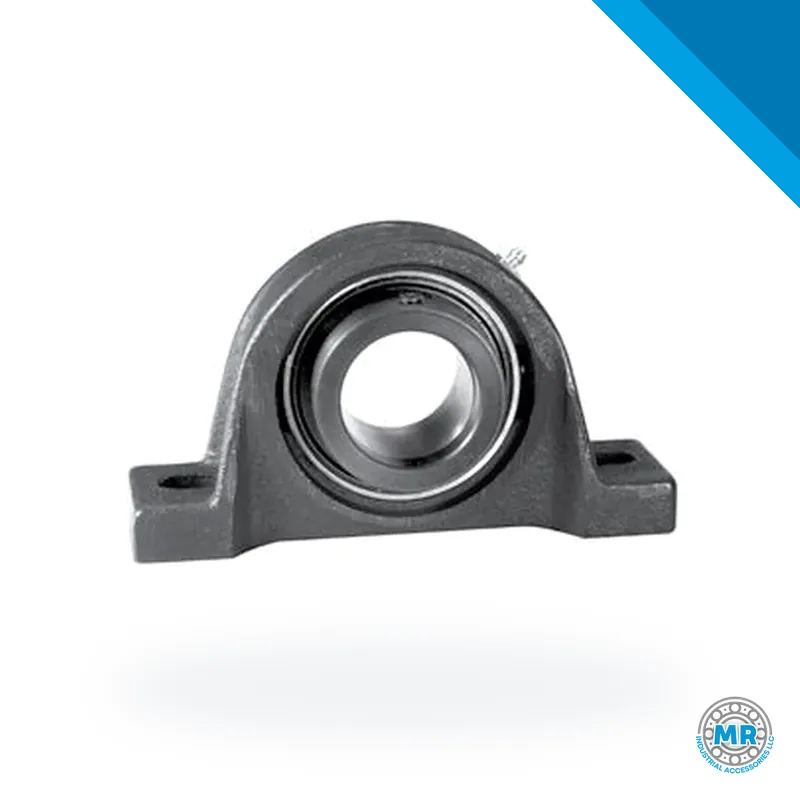

LINK-BELT P3Y2B08N pillow block bearing

LINK-BELT P3Y2B08N belongs to pillow block bearing, part of our Bearing housings range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for P3Y2B08N and any equivalents.

The P3Y2B08N from Link-Belt is a pillow block in the 200 series, built around an insert bearing with an extended inner ring. The cast iron housing carries rotating shafts, while the insert design keeps mounting straightforward and regreasing simple. It suits equipment that runs with moderate loads at normal speeds, and it is a common choice in power transmission work.

Reading the code helps with selection and reordering. The P stands for pillow block, the 3 identifies the housing type, Y2 is the insert series, B is the sealing configuration, 08 is the nominal shaft diameter in inches (half an inch), and N marks a variant with a through hole for mounting. Each element points to a specific characteristic of the housing and its insert.

Typical duty includes belt conveyors, bucket elevators, mixers, mills, centrifugal pumps and process equipment in food, chemical and aggregate plants. The cast iron housing handles dusty and humid conditions, and the extended inner ring insert simplifies assembly onto solid shafts. These units are often found on production lines where maintenance has to be quick and dependable, with moderate radial loads and normal peripheral speeds.

When specifying a housing, look at the shaft diameter, the load type (radial, axial or combined), the environment and the rotation speed. The B sealing guards against dust and splashes; where water is abundant or particles are fine, additional seals are worth evaluating. Align housings correctly during assembly to avoid parasitic stresses, and keep to a lubrication schedule with quality grease while checking internal clearance to support the service life of the insert bearing.

Housings in the 200 series with insert are interchangeable among brands that produce mounted bearings to equivalent dimensional standards. For a replacement, confirm the shaft diameter, the distance between mounting holes, the height to center and the sealing type. Replacing the complete housing is generally advisable so that the fit between housing and insert stays correct.

To request a quote for the Link-Belt P3Y2B08N or a similar variant, send the code or your shaft measurements by WhatsApp or email. The team replies promptly, can suggest equivalents and helps with the choice, and can also advise on assembly and lubrication for the mounted bearing.
