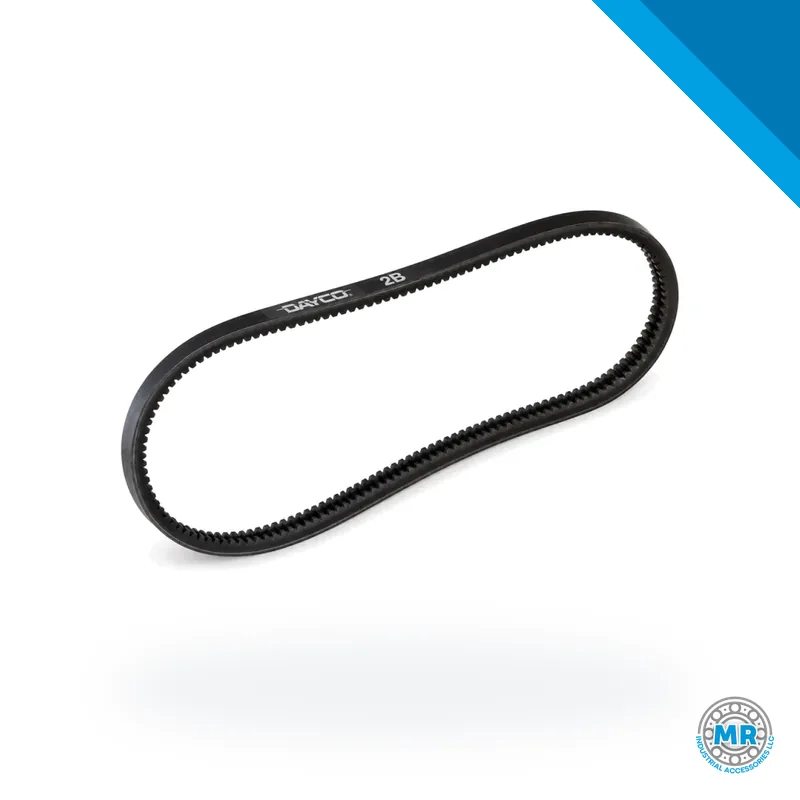

V-belt Dayco 2B17450

DAYCO 2B17450 belongs to v-belt, part of our Power transmission range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for 2B17450 and any equivalents.

This Dayco 2B17450 is a banded V-belt in the 2B profile, with an effective length of 1143 mm, a width of 28.7 mm and a 40° angle. Those three figures are what identify the belt on a drive, so they are the first thing to check against the old part. We carry it for maintenance, engineering and purchasing teams across the US, Canada, Mexico and South America.

The 2B profile and the 1143 mm effective length define how the belt sits in the pulley grooves and how it runs around the drive. The effective length is measured on the pitch line, so it is the number to compare when a belt is being matched to an existing drive rather than to a catalog description. The 28.7 mm width and 40° angle complete the profile details you need before ordering.

The simplest way to confirm this belt is to read the marking on the back of the old one and compare the profile, length and width. If the number is worn or the belt has been replaced with something else, send the drive details and the team can help confirm the right belt or suggest an equivalent.

Banded V-belts are commonly replaced as a set, so it is worth checking all belts on the drive at the same time and noting any that are cracked, glazed or sitting low in the grooves. Send the part number 2B17450 by WhatsApp or email to request a quote.
