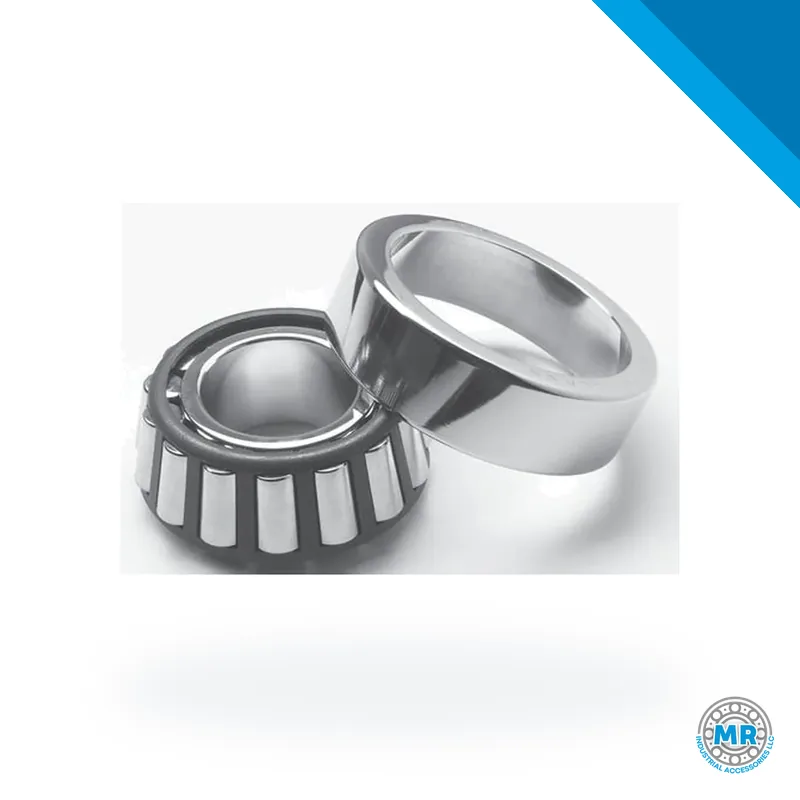

TIMKEN 32310B tapered roller bearing
- Brand
- TIMKEN
- Category
- Bearings
- Subcategory
- Tapered roller bearings
We reply promptly.
Tell us the quantity you need and request a quote by WhatsApp or email.
Other brands for this category
Ask us for alternatives. We check every equivalent against the part number and your application.
Can't find the exact model? Tell us the part number or model you need. We'll track it down and quote it, whether or not it appears in our catalog.
Decoding TIMKEN 32310B
- 323Series
- Tapered roller bearings, 323 series. Series differ in outside diameter and width even when the bore is the same.
- 10Bore
- Bore 50 mm (10 × 5).
- BSuffix
- TIMKEN suffix: identifies the variant, such as seals or shields, cage, internal clearance or other features.
32310 is the standard ISO basic designation, which sets the bearing type, series and bore.
Description
TIMKEN 32310B measures 50 mm across the bore and 110 mm across the outside diameter; its total width is 42.25 mm (50 x 110 x 42.25 mm).
TIMKEN 32310B belongs to tapered roller bearing, part of our Bearings range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for 32310B and any equivalents.
When a shaft carries radial and axial force at the same time, a tapered roller bearing is often the answer. The tapered rollers and raceways make line contact, which spreads the load across the assembly and gives the bearing high capacity for the forces involved. You will find this design in gearboxes, wheel axles and agricultural machinery, where loads are heavy and alignment is controlled. MR Industrial Accessories supplies the TIMKEN line.
Reading the designation tells you a lot before you open a catalog. Take 32205B: the leading digits point to the size, and the trailing B signals a construction variant. Change the number and the dimensions change with it, as happens across 32308B, 32309B and 32310B. The B commonly reflects a different contact angle or an internal design change, so the full part number is what identifies the exact bearing.
These bearings show up in automotive, agricultural, mining and metallurgical work. In this market they are common in seeders, harvesters, trailers, conveyor belts and machine tools, and they also appear in earthmoving equipment and power transmission systems. The reason is the same everywhere: they handle radial and axial forces on the same shaft.
Selection comes down to sealing type, internal clearance and lubrication. Tapered rollers normally run in pairs with preload adjustment, which makes alignment and mounting practice critical. Grease or oil both work, depending on speed and operating temperature. Good sealing keeps contamination out and helps the bearing last. Follow the manufacturer's recommendations for each application.
Interchange between brands is possible when dimensions and design line up. TIMKEN is a global reference, and other manufacturers offer alternatives. To substitute safely, compare the complete part number and the technical specifications rather than the size alone. Our team can review the details with you.
Send the part number or model you need by WhatsApp or email and we will quote it. If a compatible alternative makes sense for your application, we will point it out.
Dimensions
50 x 110 x 42.25 mm (d x D x T): boundary dimensions for basic designation 32310, according to ISO 355.
- Bore
- 50.000 mm
- Outside diameter (D)
- 110mm
- Total width (T)
- 42.25mm
SKF and other brands, same size
Other brands' pages with basic designation 32310: 50 x 110 x 42.25 mm (d x D x T) per ISO 355.
- Need the SKF 32310? We can also quote:3231032310/VA98332310 B/CL7C
- FAG32310-A32310-B
- NTN32310U
- RKB32310
What they share are the ISO 355 boundary dimensions, not the specs: seals or shields, internal clearance, cage and load rating may vary with brand and suffix. Every quote is by full part number.
Frequently asked questions
- TIMKEN 32310B bearing: what are its dimensions?
- TIMKEN 32310B measures 50 mm across the bore and 110 mm across the outside diameter; its total width is 42.25 mm (50 x 110 x 42.25 mm). Those are the boundary dimensions standardized in ISO 355 for basic designation 32310.
- What does the letter B mean in the designation?
- It marks a construction variant inside the series, such as a different contact angle or an internal modification. Keep the complete part number intact when you compare bearings.
- How are tapered roller bearings mounted?
- Usually in pairs, with preload set through nuts, washers or spacers. Alignment and lubrication need to be right for the bearing to run as intended.
- Can I replace a TIMKEN bearing with another brand?
- Yes, when dimensions and design are equivalent. Compare the full part number and the technical specifications, and ask us to confirm the match.
