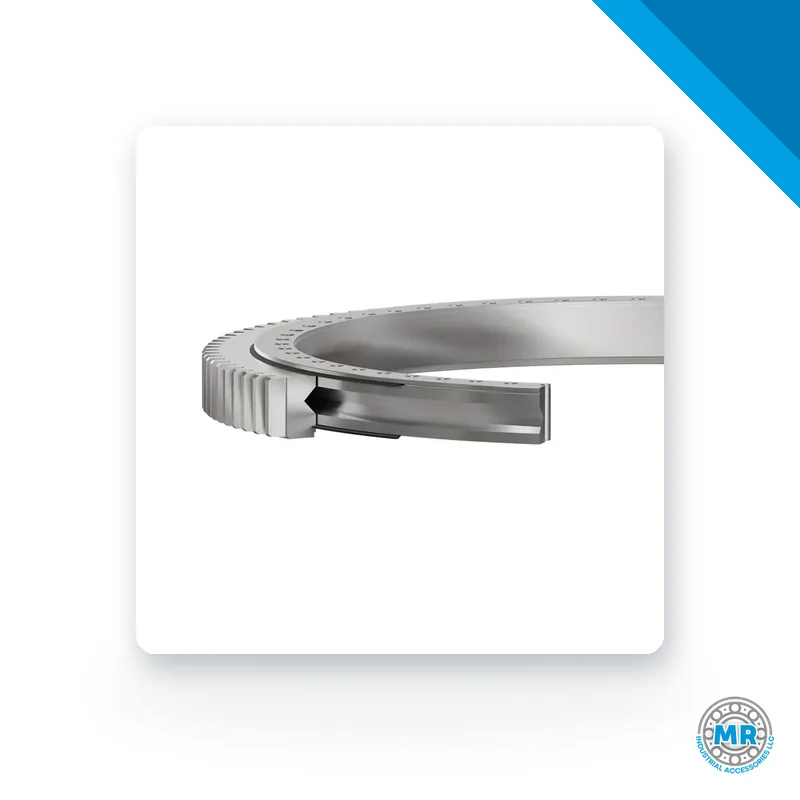

TECMA DRIVE E.1144.30.12.D.3-RV slewing ring

TECMA DRIVE E.1144.30.12.D.3-RV belongs to slewing ring, part of our Power transmission range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for E.1144.30.12.D.3-RV and any equivalents.

TECMA DRIVE slewing rings are power transmission components that enable controlled rotation between sections of a structure while supporting axial and radial loads and moments. They suit equipment that needs precise rotary motion, including platforms, cranes and orientation systems. MR Industrial Accessories supplies this line and offers technical guidance to match the right model to your application.

The first letter in a TECMA DRIVE slewing ring code indicates the gearing: E stands for external gearing. The next block gives the ball or roller diameter in millimeters: 20 for the light series, 25 or 32 for the heavier series, and 14 for crossed-roller versions. Codes that finish with D plus a number identify special versions, such as double-row ball designs. For a quote, send the complete code from the nameplate. If the nameplate is unreadable, provide the outer diameter, inner diameter, height and a photo of the gearing, and we can identify the part.

These slewing rings appear in metallurgy, construction, mining and material handling. They are common in cranes, excavators, aerial work platforms, drilling equipment and solar tracking systems. Their role is to allow controlled rotation of heavy structures while carrying combined loads. The external gearing and robust construction make them suitable for demanding environments.

When selecting a slewing ring, consider the load it will carry, the required slewing torque and the operating conditions. Check alignment with the pinion and how the ring mounts to the structure, and ensure proper lubrication and sealing against contaminants. Tooth clearance and assembly rigidity affect service life. Our team can help you define the most suitable model.

TECMA DRIVE slewing rings can be interchanged with equivalent products from other brands when the critical dimensions, number of teeth and load capacity match. Compare technical specifications rather than codes alone. MR Industrial Accessories can guide you on compatibilities and suitable options.

If you already have the part number, message us on WhatsApp and we will send a quote promptly. We can also advise you on specific variants. MR Industrial Accessories is an official distributor of TECMA DRIVE in the USA.
