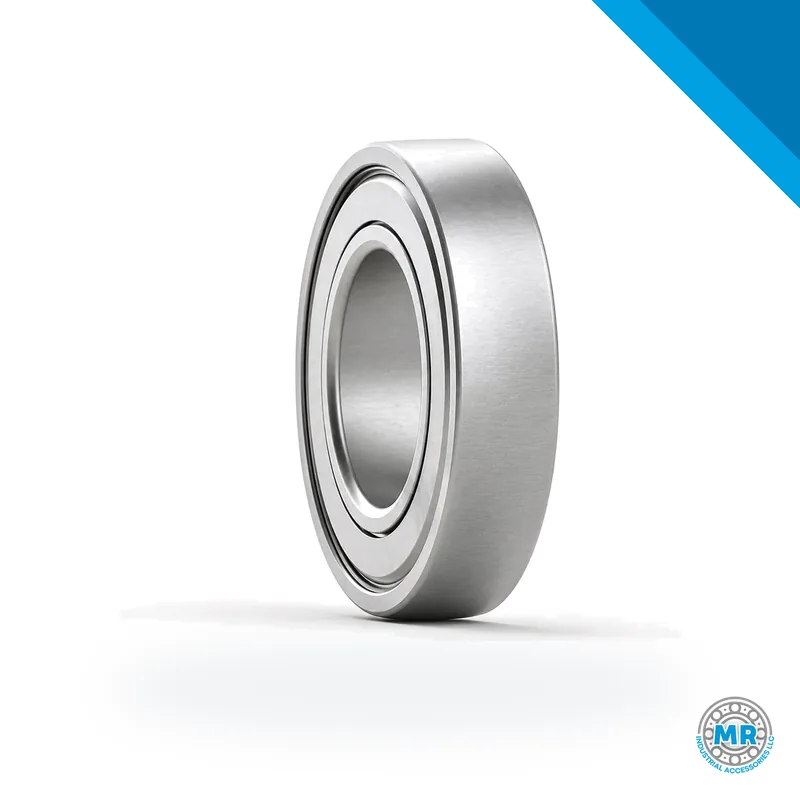

SKF XG203NPPB y-bearing (insert bearing)

SKF XG203NPPB belongs to y-bearing (insert bearing), part of our Bearings range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for XG203NPPB and any equivalents.

The SKF Y-bearing XG NPPB series is a Y-insert that combines a spherical outer ring with two set screws on the inner ring. It is designed to be mounted in split plummer block housings and take-up frames, where it transmits motion in low and medium speed equipment. The sealed construction handles dusty, damp or splash-prone areas, and installation is straightforward without specialized tooling. MR Industrial Accessories supplies this line and offers technical guidance to help you select the right size.

Reading the part number helps you identify the insert quickly. The prefix XG denotes the series with a spherical outer ring and set screw locking. The suffix NPPB describes the sealing arrangement: a double lip with extra protection against contaminants. The digits between these two elements, as seen in XG203NPPB or XG210NPPB, indicate the bearing size and increase from smaller to larger diameters. A higher number corresponds to a larger outer diameter and greater load capacity.

Typical applications include belt conveyors, bucket elevators, mixers, mills, packaging lines and process equipment in food, chemical and aggregate plants. Split plummer block housings with Y-inserts are also common in agricultural machinery such as seeders and combine harvesters, as well as in industrial ventilation systems. The design simplifies maintenance because the insert can be replaced without removing the entire housing.

When selecting an insert, confirm the shaft diameter and the housing type. The NPPB seal works well in environments with moderate dust and moisture; for frequent washdowns, consider additional sealing options. During mounting, tighten the set screws with the correct wrench and make sure the outer ring seats properly in the housing. Factory lubrication is generally sufficient, but demanding applications may require periodic replenishment.

Y-bearings from different manufacturers can be interchangeable when the main dimensions and locking method match. Compare shaft diameter, outer diameter, width and screw thread. The SKF XG NPPB series can replace other inserts with similar sealing, but always verify dimensions against the original part number. MR Industrial Accessories helps you find a suitable equivalent without compromising performance.

To replace a Y-bearing in your equipment, send the complete part number via WhatsApp or email. MR Industrial Accessories quotes the SKF XG NPPB series and assists you in confirming the correct size for your application. We respond promptly and can suggest alternatives when needed.
