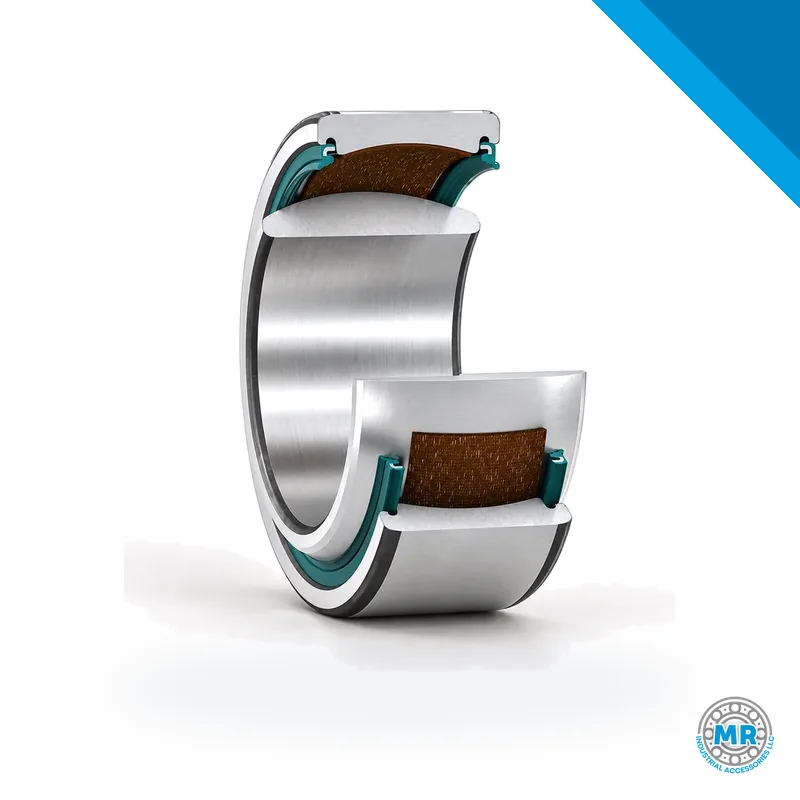

SKF GE 60 TXG3E-2LS spherical plain bearing

SKF GE 60 TXG3E-2LS belongs to spherical plain bearing, part of our Bearings range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for GE 60 TXG3E-2LS and any equivalents.

For pivot points that see a mix of radial and axial forces while the shaft and housing are not perfectly aligned, the SKF GE TXG3E-2LS series offers a spherical plain bearing solution. The inner ring carries a treated sliding surface, and the outer ring is fitted with seals on both sides, so the bearing handles dusty, damp or frequently washed-down locations. You will find these bearings in farm equipment, earthmoving machines, presses and hydraulic linkages, among other industrial uses.

Reading the part number helps when you need to cross-reference or reorder. GE identifies a radial spherical plain bearing. The number that follows is the nominal bore in millimeters, such as 25, 30, 35, 45 or 60. TXG3E points to a special treatment on the inner ring sliding surface, typically PTFE, which lowers friction and helps resist wear. The -2LS suffix means there are lip seals on both sides. So a GE 25 TXG3E-2LS is a 25 mm bore bearing with PTFE treatment and double sealing.

Typical applications include agricultural seeders, harvesters and tillage tools; construction backhoe loaders and skid steer loaders; metalworking presses and bending machines; and hydraulic cylinders and articulated arms. The bearing's ability to accommodate combined loads and misalignment makes it a good fit for articulation points where perfect alignment is not realistic.

When selecting a GE TXG3E-2LS bearing, consider bore diameter, whether the load is radial, axial or combined, the operating temperature and the working environment. The -2LS seals need a clean, burr-free contact surface, and the housing should be checked for the correct tolerance. In most cases lubrication is permanent, but severe conditions may call for relubrication. Initial alignment should allow oscillating movement without forcing the seals.

Other manufacturers offer spherical plain bearings with similar designations, but suffixes can differ. A bearing with double sealing and PTFE treatment may use a different code from one brand to another. Always confirm the critical dimensions — bore diameter, width and outer diameter — along with the service conditions before substituting. MR Industrial Accessories supplies the SKF brand as part of its bearing and rod end range.

If you are replacing a GE TXG3E-2LS spherical plain bearing, send the complete code by WhatsApp or email. The team at MR Industrial Accessories can advise on the right option for your application and suggest equivalents when needed.
