Industrial pulley 200 mm, 2 grooves, section B
- Brand
- EMMAR
- Category
- Power transmission
- Subcategory
- Pulleys
- Section
- B
- Series
- Sección B
We reply promptly.
Tell us the quantity you need and request a quote by WhatsApp or email.
Can't find the exact model? Tell us the part number or model you need. We'll track it down and quote it, whether or not it appears in our catalog.
Description
EMMAR POLEA 200 2B belongs to pulleys, part of our Power transmission range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for POLEA 200 2B and any equivalents.

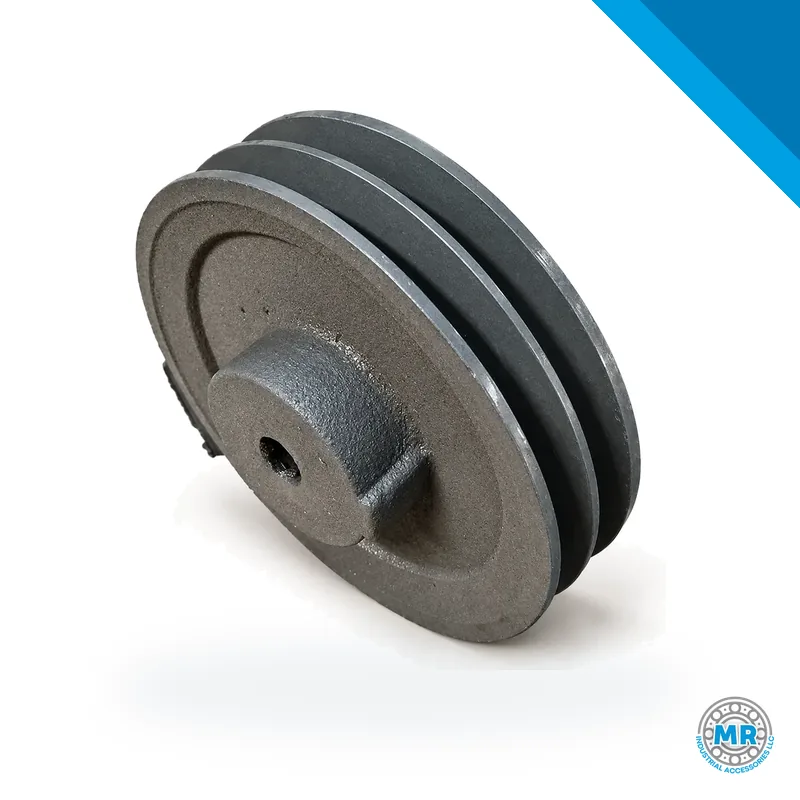

This EMMAR pulley measures 200 mm across and carries two grooves cut for section B V-belts. It transfers motion between shafts, letting you set speed and torque through the ratio of the two pulley diameters. The build suits industrial drives that need steady, dependable operation. Because MR produces these pulleys in its own shop, dimensions stay consistent and custom requirements can be addressed.
The code POLEA 200 2B spells out the key details: 200 mm diameter, 2 grooves, section B. Section B is a standard V-belt profile used for medium power transmission. Running two belts side by side raises the load the drive can carry and adds a second path if one belt needs attention. In-house production at MR means the groove geometry and balance are controlled for smooth running.
You will find this pulley on compressors, fans, pumps, conveyors and other process equipment. It mounts on the motor shaft or the driven shaft, and paired with a pulley of a different diameter it sets the speed ratio. The 200 mm size and section B cover many of the power levels seen in plant equipment, and the same pulley also appears on agricultural machinery and other drives where uptime matters.
When installing, clean the shaft and keyway and remove any burrs. The pulley should seat correctly and be secured against axial movement. Align the pulleys so the belts run true; misalignment shortens belt and bearing life. Tension the belts to the belt maker's recommendation. For selection, look at the power to transmit, the speed, and the pitch diameter. Two grooves give more capacity than a single-groove pulley.
If you are matching an existing drive, send the code POLEA 200 2B or the dimensions you need. MR builds pulleys in a range of sizes and sections, so a tailored option may be possible. Share the equipment data and we will help you pick the right component.
To request a quote for this pulley or ask about other sizes, message us on WhatsApp or email and mention POLEA 200 2B. Our team will get back to you with the information you need.
Dimensions
- Size
- 200mm
- Grooves
- 2
- Section
- B
Frequently asked questions
- What does POLEA 200 2B tell me about the pulley?
- It identifies a pulley with a 200 mm diameter and 2 grooves for section B belts. Section B is a standard medium-power V-belt profile. Two grooves let you run two belts in parallel for more transmission capacity.
- Is this pulley made by MR?
- Yes, it is manufactured in-house under the EMMAR brand. That allows MR to control dimensions and to handle special sizes when needed.
- How do I ask for a different size or groove count?
- Contact us on WhatsApp or by email with the code POLEA 200 2B or with your required diameter, number of grooves and section. We will quote the option that fits your application.
