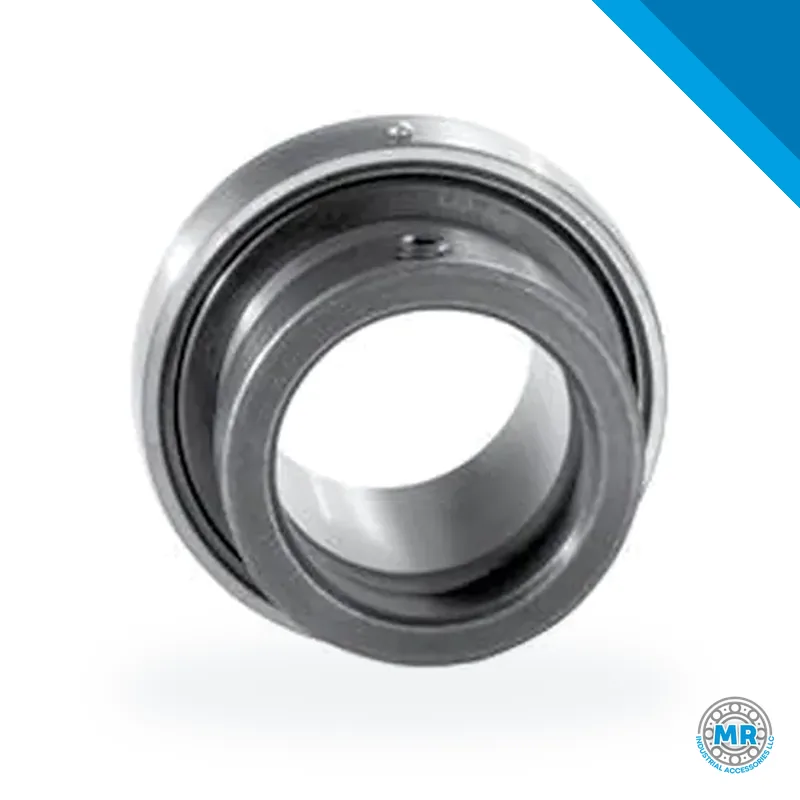

LINK-BELT YBG232NL insert bearing

LINK-BELT YBG232NL belongs to insert bearing, part of our Bearings range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for YBG232NL and any equivalents.

The LINK-BELT YBG insert bearing is a ball bearing with an extended inner ring. It mounts in split housings and wall units, supporting rotating shafts while providing alignment and sealing. MR Industrial Accessories supplies this series and assists you in selecting the correct part number for your equipment.

The YBG code breaks down into several elements. YBG indicates the insert series with extended inner ring. The following number shows the size within the 200 series. The letters NL specify the sealing and locking arrangement, and any trailing symbols denote machining or groove variations. For this reason, YBG210NL and YBG219NL belong to the same family but have different dimensions and load capacities. Provide the complete part number and we will quote the exact reference.

Typical installations include split housings, wall units, take-up frames, and idler pulleys. You will find these inserts in conveyor belts, mills, mixers, bucket elevators, washing equipment, and treatment plants, as well as in agricultural, food, and material handling machinery where dust, moisture, or frequent washdowns occur. The 200 series is the medium-section option among LINK-BELT inserts, and the extended ring simplifies locking onto the shaft with a collar or set screws.

When selecting, consider shaft diameter, housing type, and the sealing required by the operating environment. The NL suffix indicates protection against contaminants; if water or fine dust is present, check the seal type. During mounting, align the housing with the shaft before tightening, verify axial clearance, and lubricate according to the duty cycle. The insert should sit firmly without forcing the outer ring. If vibration appears, inspect alignment and housing condition before replacing the bearing.

Interchangeability: 200 series inserts from various brands share basic dimensions, but sealing, locking, and tolerance suffixes differ. Do not substitute with a generic part number without confirming shaft diameter, inner ring width, and locking method. LINK-BELT uses its own nomenclature, and an equivalent reference from another manufacturer may not match the seal or groove. If unsure, send us the original part number and we will identify a compatible alternative.

MR Industrial Accessories supplies LINK-BELT. For a YBG replacement or new equipment, message us on WhatsApp with the full part number—for example, YBG212NL—and we will respond promptly. We can also advise on the appropriate housing and sealing for your application.
