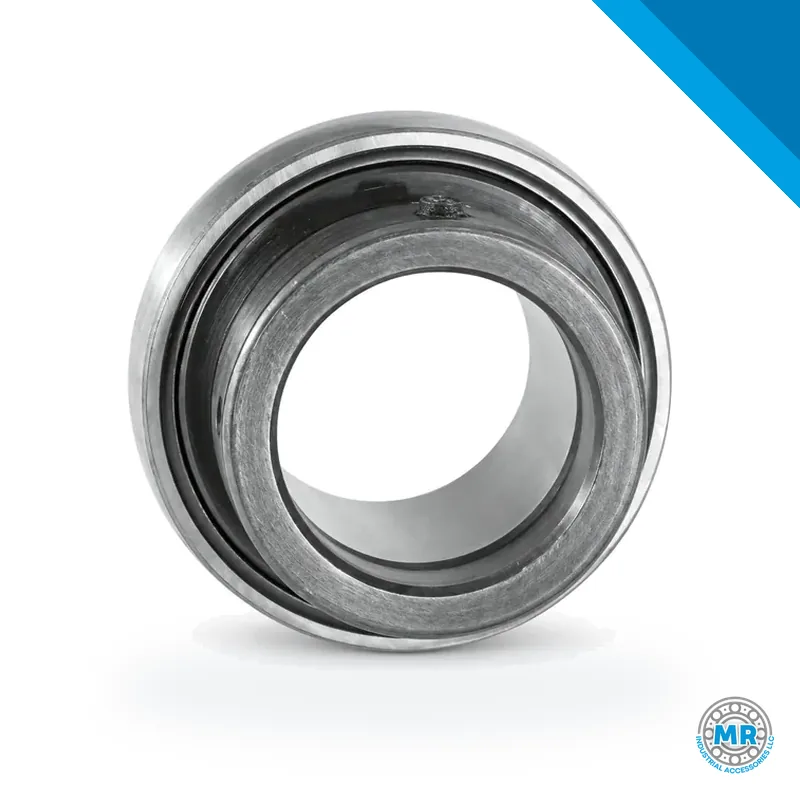

LINK-BELT YB2E32NL insert bearing
- Brand
- LINK-BELT
- Category
- Bearings
- Subcategory
- Y-bearing (insert bearing)
- Series
- 200
We reply promptly.
Tell us the quantity you need and request a quote by WhatsApp or email.
Can't find the exact model? Tell us the part number or model you need. We'll track it down and quote it, whether or not it appears in our catalog.
Description
LINK-BELT YB2E32NL belongs to insert bearing, part of our Bearings range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for YB2E32NL and any equivalents.
The LINK-BELT 200 series insert bearing is a ball bearing with an extended inner ring. It mounts on a shaft and fits into split or solid housings, which keeps installation and alignment straightforward. When a basic bearing unit is needed and replacement should be simple, this series is a common choice. MR Industrial Accessories LLC supplies this line and quotes by part number through WhatsApp or email.
The part number tells you what you are holding. In references such as YB2E20NL and YB2E32NL, the digits in the middle (20, 32) give the insert size inside the 200 series, while the surrounding letters point to design variations, including how the bearing locks to the shaft and how it is sealed. The safest way to order is to send the complete model stamped on the housing or on the bearing being replaced.
Typical applications include conveyors, belts, elevators, mixers and process equipment in food, chemical and materials plants. They also turn up in medium-sized fans and pumps. Where the insert sits in a split housing, a worn bearing can be changed without pulling the entire shaft, which reduces downtime on bucket elevators, screw conveyors and packaging lines.
Selection comes down to a few checks: shaft diameter, locking method, and sealing. Locking versions include set screws, an eccentric ring or a taper sleeve. The seal determines how well the unit handles dust and moisture. Before tightening, confirm the housing is aligned. Lubricate according to the duty cycle, and do not strike the insert during mounting, since the raceways can be damaged.
On equivalents, 200 series inserts interchange between brands that share the same dimensional nomenclature, but locking and sealing details differ. A matching shaft diameter alone is not enough: compare the overall width, the set screw positions and the seal type. If anything is unclear, a photo of the housing and the old part number helps us identify the right option.
Dimensions
Dimensions and tolerances: Message us the part number on WhatsApp and we'll verify its dimensions and version with the manufacturer's datasheet.
Frequently asked questions
- How do I identify the part number of the insert I need?
- Check the old bearing or the housing plate for the stamped number. If it is worn, measure the shaft diameter and the overall insert width. With those measurements and a photo of the assembly, we can point you to the equivalent model.
- Can it be mounted in a housing from another brand?
- Yes, as long as the main dimensions line up: shaft diameter, overall width and locking system. 200 series inserts interchange between brands, but verify the set screw positions and the seal type before assembly.
- What lubrication is recommended for these bearings?
- General-purpose lithium grease for ball bearings works well. Set the relubrication interval according to operating hours and site conditions. In wet or dusty areas, shorten the intervals and inspect the seals.
