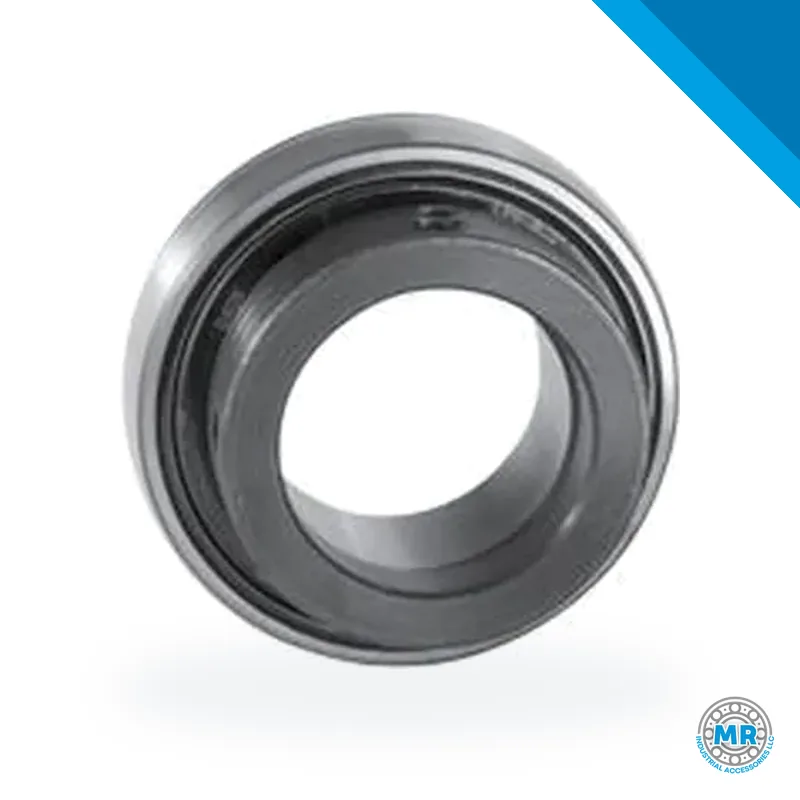

LINK-BELT WB2E20EL insert bearing

LINK-BELT WB2E20EL belongs to insert bearing, part of our Bearings range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for WB2E20EL and any equivalents.

This LINK-BELT insert bearing is a bearing unit with an extended inner ring, made to sit in split plummer block housings and take-up frames. It lets a shaft keep turning on a support that can be replaced without tearing down the whole line. MR Industrial Accessories LLC supplies this line and can help you sort out which variant fits your equipment.

Reading the code is straightforward: the letters WB mark the insert family, the following number gives the size, and the EL at the end points to the sealing version and insert layout. So WB2E20EL and WB2E32EL are two sizes from the same family. When you ask for a quote, send the full code from the housing or the equipment nameplate.

You will find these inserts on belt conveyors, bucket elevators, mixers, screens and process lines in food, cement, grain and aggregate plants. They suit material handling setups where the housing is bolted to a structure and the shaft needs some freedom to align. Maintenance teams often turn to them when dust, moisture or regular washdown are part of the daily routine.

For a proper selection, look at the shaft diameter, the housing type it seats in and the working conditions. The EL seal sets the level of protection against dust and water; if the machine gets washed down or runs outdoors, that barrier should be a priority. At mounting, verify housing alignment, initial lubrication and that the inner ring is locked correctly to the shaft. An insert that is not seated well will cut short the life of both the bearing and the housing.

On interchangeability, inserts in this series cross between makers by shaft diameter and housing configuration, but sealing, locking method and tolerances are not the same. Do not rely on the code alone: compare the housing geometry and how the shaft is locked. We can point you to an alternative that fits the same mounting.

If you have the insert code, the shaft diameter or a photo of the housing, send it over WhatsApp or email and we will get your quote moving. We also manufacture split plummer block housings and sheaves, so if the job calls for the complete assembly, we can take care of it in the same request.
