LINK-BELT MFXCL224N flange bearing 2 holes
- Brand
- LINK-BELT
- Category
- Bearing housings
- Subcategory
- Bearing housings
- Series
- 200
We reply promptly.
Tell us the quantity you need and request a quote by WhatsApp or email.
Can't find the exact model? Tell us the part number or model you need. We'll track it down and quote it, whether or not it appears in our catalog.
Description
LINK-BELT MFXCL224N belongs to flange bearing 2 holes, part of our Bearing housings range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for MFXCL224N and any equivalents.

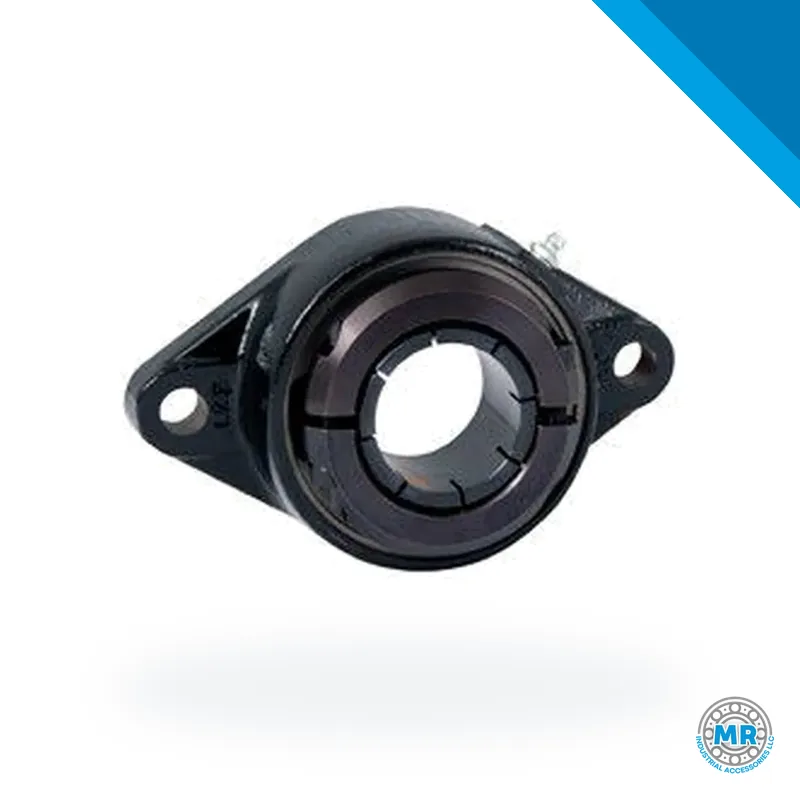

The LINK-BELT 2-bolt flange mounted bearing pairs an insert bearing with a flange housing, so the unit bolts directly to a flat surface using two fasteners. It supports rotating shafts where space is tight at the front of the machine and alignment needs to stay simple, as seen on conveyors, fans and process equipment.
The MFXCL…N code breaks down into three parts. MFXCL marks the 2-bolt flange housing family that carries an insert bearing. The digits that come next tie the unit to a specific insert size in the 200 series. The trailing N denotes a build variation inside that same family. Reading the code this way lets a maintenance planner pull the exact reference and order it without guesswork.
On plant floors these housings show up on belt and roller conveyors, mixers, blowers, centrifugal pumps and packaging lines. The two-bolt flange suits folded sheet metal or profile frames, with the shaft sitting at a right angle to the mounting face. Food, chemical and aggregate operations often choose them when they want a compact assembly that is easy to service.
Sizing starts with the shaft diameter, then the load pattern (radial, axial or a mix) and the site conditions. Dusty or damp areas call for closer attention to the insert bearing seal; where misalignment is possible, verify the flange can accommodate the needed movement. Installation needs a flat, clean surface, bolts snugged in a cross pattern and lubrication applied before the shaft turns.
Different manufacturers publish their own flange bearing nomenclatures, and swapping one for another is not a straight substitution. Shaft diameter, hole spacing, flange outside diameter and seal design all have to line up. An equivalent part number from another maker often works, but confirming those critical dimensions first avoids a return trip to the store room.
To request a LINK-BELT flange bearing housing, send the complete part number by WhatsApp or email. The MR team replies promptly with a quote and can suggest equivalents or help you choose if you are after a variant that is not listed. If you only have the model or the dimensions, share those and we will point you to a compatible option.
Dimensions
- Bore
- 1 1/2 in
Frequently asked questions
- What does the abbreviation MFXCL mean in these bearing housings?
- MFXCL is the LINK-BELT identifier for 2-bolt flange housings that include an insert bearing. The number after it indicates the insert bearing size in the 200 series, and the final N shows a construction variant within the same family.
- How do I choose the right bearing housing for my shaft?
- You need the shaft diameter, the type of load and the working conditions. The mounting space and the required sealing also play a role. With that data, we'll point you to the 200 series part number that best fits your equipment.
- Can I replace a bearing housing from another brand with a LINK-BELT one?
- Yes, as long as the critical dimensions match: shaft diameter, flange hole spacing, outer diameter and sealing type. Compare those values before installing. If you send us the dimensions, we'll help you find the equivalent.
