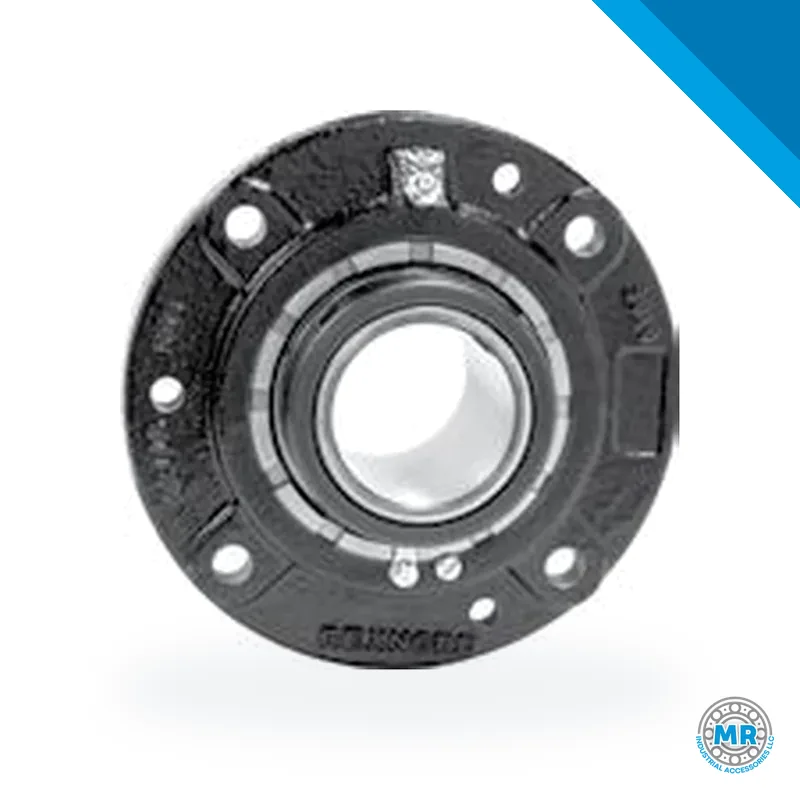

LINK-BELT FCB224M75H flange bearing 4 holes

LINK-BELT FCB224M75H belongs to flange bearing 4 holes, part of our Bearing housings range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for FCB224M75H and any equivalents.

For wall or structure mounting, the Link-Belt B22400 series 4-bolt flange bracket is a mounted bearing that supports and guides shafts in equipment where front access makes installation and service easier. The line covers several shaft sizes and sealing options, and MR Industrial Accessories supplies it to maintenance and purchasing teams in the United States and Latin America.

Reading the part number helps you order the right unit. The prefix FCB means a four-bolt flange. The digits 224 refer to the B22400 series. The letter M identifies the locking method, and the number after it is the shaft size. A final H marks the sealing variant. Units in this series share the same housing, so the shaft diameter is what changes from one reference to the next. Send the full part number and we can quote the exact size.

These brackets are common on belt conveyors, bucket elevators, mixers, mills and process equipment, as well as on food and beverage machinery where washdowns are routine and sealing matters. Bolting to a front flange makes them straightforward to fit on sheet metal walls or profile frames, and the shaft can be pulled without taking the whole assembly apart.

When selecting, check the shaft diameter, the load type and the working environment. The H seal handles dust and moisture. For pressure washing or fine particles, extra protection is worth considering. Make sure the flange sits flat and the four bolts are tightened evenly to prevent distortion. Proper lubrication and careful alignment help the mounted bearing last.

Four-bolt flange brackets can be swapped between brands when the flange dimensions, shaft diameter and locking type line up. Link-Belt, SKF, Timken and other lines offer comparable options, but hole spacing and locking systems can differ. If you are replacing an existing unit, send the original part number and we will point you to a compatible alternative.

MR Industrial Accessories supplies the Link-Belt line and helps you match the bracket to your equipment. Send the part number from the nameplate or the old bearing by WhatsApp or email. We reply promptly, can suggest equivalents and help you choose the option that fits your mounting.
