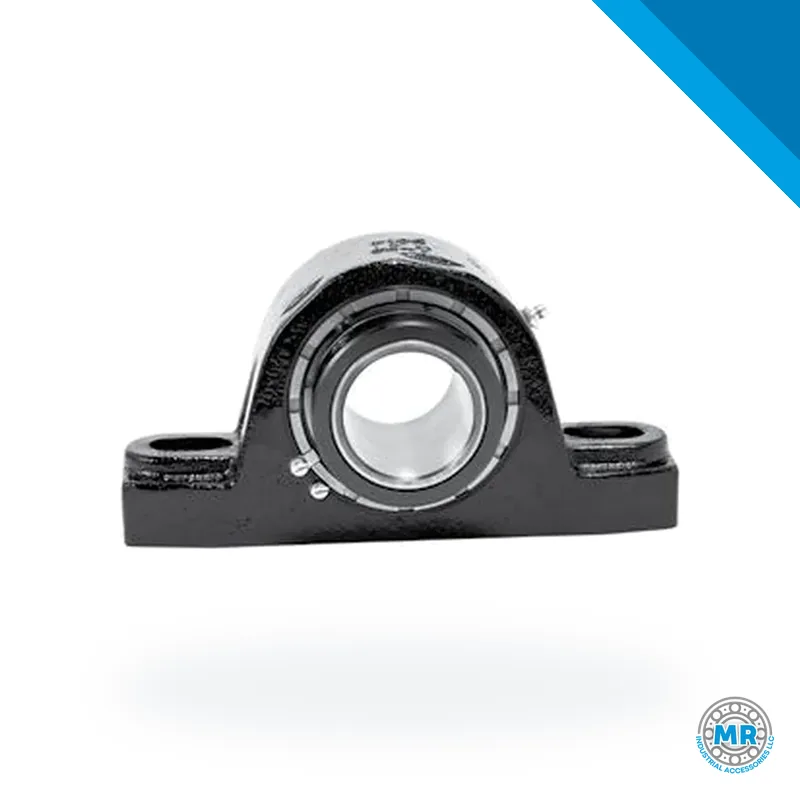

LINK-BELT EPEB224M70H pillow block bearing

LINK-BELT EPEB224M70H belongs to pillow block bearing, part of our Bearing housings range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for EPEB224M70H and any equivalents.

The Link-Belt B224 pillow block is a mounted bearing unit that pairs a spherical roller bearing with a cast iron housing. It handles radial and axial loads on rotating shafts and is built for power transmission applications that call for a self-aligning, straightforward-to-install assembly.

Reading the part number is simple once you know the blocks: EPEB marks the pillow block series, 224 is the mounted bearing size, and the digits after M give the shaft diameter in millimeters. So EPEB224M35H fits a 35 mm shaft, EPEB224M40H fits a 40 mm shaft, and other diameters follow the same pattern. The H suffix identifies the housing configuration. With this breakdown, you can order either the complete unit or the exact replacement.

Typical installations include belt conveyors, bucket elevators, mills, mixers, centrifugal pumps, and process equipment in food, chemical, cement, and aggregate plants. These units also appear in agricultural machinery and industrial ventilation systems. In dusty, damp, or washdown-heavy areas, the housing and seal choice matters as much as the bearing itself.

When selecting a pillow block, confirm the shaft diameter, the radial and axial loads, and the operating environment. The B224 series accepts different seal types depending on contamination levels. Proper alignment with the shaft and anchor points prevents parasitic stresses. Follow the manufacturer's lubrication schedule and renew grease according to the duty cycle. Using the right mounting tools helps the bearing reach its expected service life.

Link-Belt B224 series pillow blocks interchange with other brands of mounted pillow block bearings that share the same dimensional standard. For a quote, send the full part number along with your operating conditions, and the team can point you to a compatible alternative. If you need a variant not shown, message the part number or model and we will take it from there.

To request technical assistance or a quote, send the part number EPEB224M35H or whichever you require via WhatsApp or email. The team replies promptly and can suggest equivalents and help you choose.
