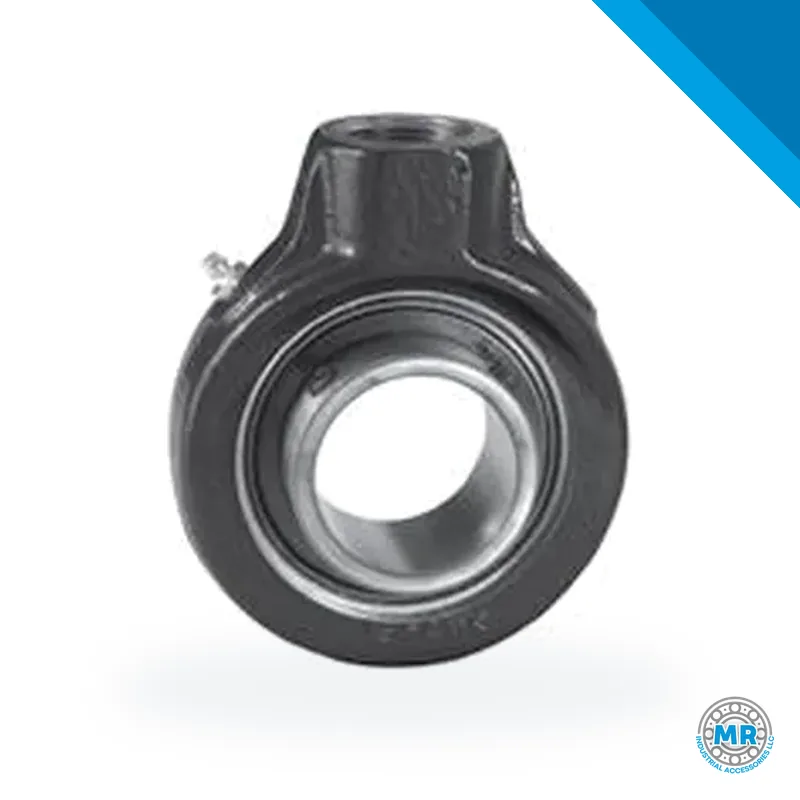

LINK-BELT EHBS2E32E hanger bearing

LINK-BELT EHBS2E32E belongs to hanger bearing, part of our Bearing housings range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for EHBS2E32E and any equivalents.

For screw conveyors and other continuous-motion systems, Link-Belt 200 series hanger bearings provide shaft support and guidance. A top flange secures the unit to the structure, while the bearing sits in a self-aligning body that permits rotation. MR Industrial Accessories LLC supplies this line to process plants, mills, and material handling operations throughout the United States and Latin America.

The code breaks down into distinct segments. The letters EHBS denote the flanged hanger bearing family. The following number specifies the series and housing size, and any trailing characters indicate sealing or configuration options. This explains why references like EHBS2E20E, EHBS2E26E, and EHBS2E32E can all exist together: they belong to the 200 series but vary in the digit that determines shaft size and body dimensions. To order a replacement with confidence, always supply the full code from the nameplate or drawing.

These bearings also appear in bucket elevators, mixers, and other continuous process equipment. The top flange bolts to the trough cover or supporting structure, leaving the body suspended in the material flow. This arrangement shields the bearing from the conveyed product.

Proper selection depends on shaft diameter and length, the radial and axial loads the support will see, and the operating conditions. Dusty, wet, or washdown-heavy environments call for more effective seals and an appropriate lubrication schedule. During installation, check alignment between supports to prevent unnecessary bearing loads, tighten the flange without distorting the body, and apply grease suited to the application. Regular lubrication and intact seals help maximize assembly life.

When replacing hanger bearings, interchangeability is based on shaft size and flange type, not on the commercial code. Always verify mounting dimensions, shaft diameter, and sealing arrangement before substituting a unit. If you are retrofitting existing equipment, MR Industrial Accessories LLC can recommend a compatible option from the Link-Belt line we offer. Send the complete EHBS code or your shaft dimensions via WhatsApp or email, and our team will respond promptly with a quote and any equivalent suggestions.
