Flexible coupling GUMMI A-95/105 with ES spacer 180
- Brand
- GUMMI
- Category
- Power transmission
- Subcategory
- Couplings
- Series
- Tipo A
We reply promptly.
Tell us the quantity you need and request a quote by WhatsApp or email.
Can't find the exact model? Tell us the part number or model you need. We'll track it down and quote it, whether or not it appears in our catalog.
Description
GUMMI A-95/105 ES 180 belongs to coupling, part of our Power transmission range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for A-95/105 ES 180 and any equivalents.

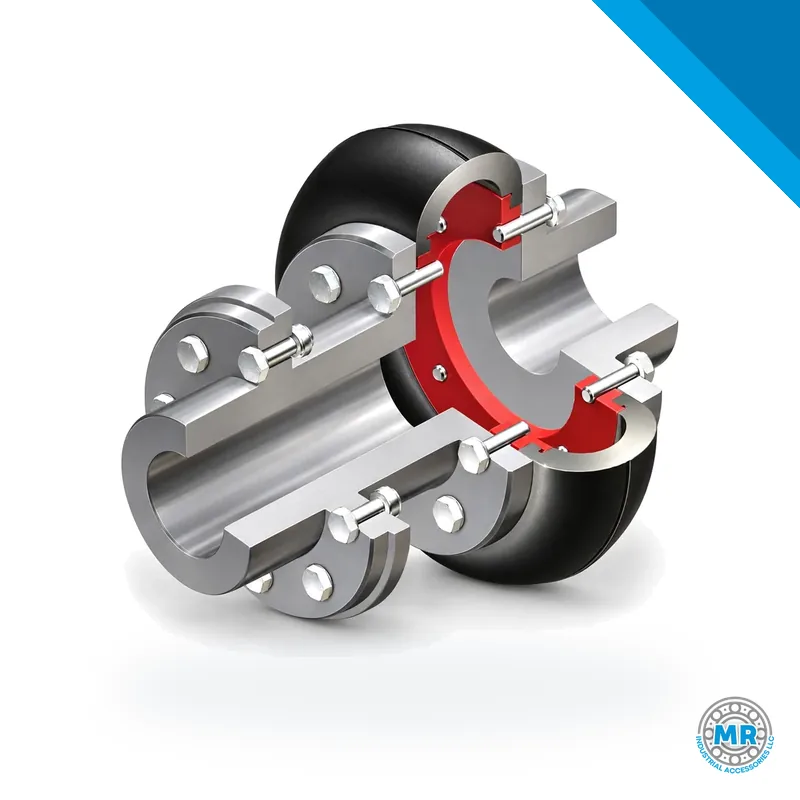

The GUMMI A-95/105 ES 180 is a flexible coupling designed to connect shafts while absorbing misalignment, vibration and shock. Its 180 mm spacer configuration lets you remove the drive equipment without disturbing the driven machine, which is particularly useful for back-pull-out pumps and setups where maintenance access is tight.
This coupling belongs to the Type A series and is identified by the model A-95/105 with an ES configuration and a 180 mm spacer. The spacer creates enough separation between the hubs to extract the flexible element and disconnect the shafts without moving the machines axially. The complete designation A-95/105 ES 180 combines the coupling size with the spacer length, which is essential for assembly and alignment.
Typical applications include centrifugal pumps, compressors, fans and other rotating equipment that requires quick maintenance. The ability to remove the impeller without shifting the casing or motor makes it especially suited to back-pull-out pumps, where the rotor is extracted toward the rear. It is also found in process lines with limited space or where realignment would be difficult.
When selecting this coupling, verify the distance between shaft ends, the keyway diameter and length, and the torque to be transmitted. The 180 mm spacer must match the available clearance. During installation, align the shafts carefully before tightening the flexible elements, and check parallelism and concentricity. Proper alignment helps extend coupling life and reduces vibration.
If you need an equivalent coupling, contact us via WhatsApp or email with the part number A-95/105 ES 180 or with your equipment dimensions. Our team can help you find the right configuration within the GUMMI Type A line. We also manufacture split plummer block housings, roller chains and sheaves, and we supply bearings, seals and power transmission products.
To request a quote for this coupling or ask about other variants, send the part number A-95/105 ES 180 via WhatsApp or email. We will respond promptly with the technical information you need for your application.
Dimensions
- Model
- A-95/105
- Configuration
- With spacer (ES)
- Spacer
- 180mm
Frequently asked questions
- What does ES mean in the model A-95/105 ES 180?
- ES indicates that the coupling includes a spacer. Here the spacer is 180 mm, which allows the flexible element to be removed and the shafts to be separated without moving the machines. This is a common setup for back-pull-out pumps.
- How do I choose the correct spacer for my equipment?
- The spacer must cover the distance between shaft ends and permit disassembly without moving the equipment. Measure that distance and check the torque and hub dimensions. If you have questions, contact us on WhatsApp with your machine data.
- Is this coupling suitable for a back-pull-out pump?
- Yes, it is designed for such applications. The 180 mm spacer simplifies removal of the pump rotor without moving the motor or piping. It is important to respect the alignment and the nominal torque of the coupling for reliable operation.
