Flexible coupling GUMMI A-120 with integral hub

GUMMI A-120 CI belongs to coupling, part of our Power transmission range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for A-120 CI and any equivalents.

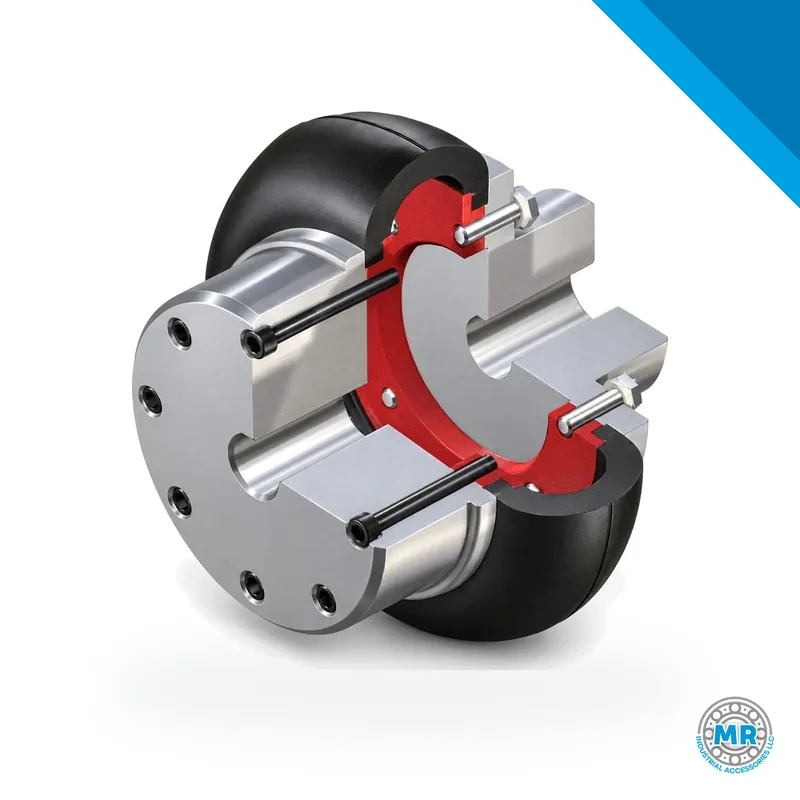

A flexible coupling in the GUMMI Type A line, the A-120 CI joins two shafts while taking up misalignment, vibration and torque peaks. Its integral hub design, identified by the CI suffix, suits larger shafts and allows a maximum bore of 170 mm. Plants that run equipment continuously and want to protect the driven machine commonly specify this model. MR Industrial Accessories LLC supplies it.

Within the Type A range, the code tells you two things. The A-120 sets the size, and CI indicates the integral hub variant, where hub and flange are produced as one piece rather than assembled. That construction keeps mounting straightforward and gives the assembly extra rigidity. The largest shaft this size accepts is 170 mm, so it belongs on larger diameter shafts; anything above that calls for a bigger size in the same series.

Heavy drives are where this coupling earns its place: mills, conveyor belts, high-flow pumps, industrial fans and process machinery that runs without long stops. Because it compensates for angular and radial misalignment, bearings and seals see less wear. Where starting torque runs high, the elastic element absorbs the shocks before they reach the rest of the system. Variable loads and demanding service conditions are part of its normal working envelope.

Selection comes down to three inputs: shaft diameter, nominal and maximum torque, and operating speed. The 170 mm maximum bore is the hard limit for the A-120 CI. During installation, align the shafts accurately before you tighten the hubs, then verify the fastening elements are tightened as the manufacturer specifies. The elastomer's condition and proper lubrication both influence how long the coupling lasts in service.

Need an equivalent or a different variant? Send the code A-120 CI over WhatsApp or email, along with your shaft dimensions. The team can point you to the right option in the Type A series or suggest another flexible coupling model when this one does not match the application, and replies come back promptly.
