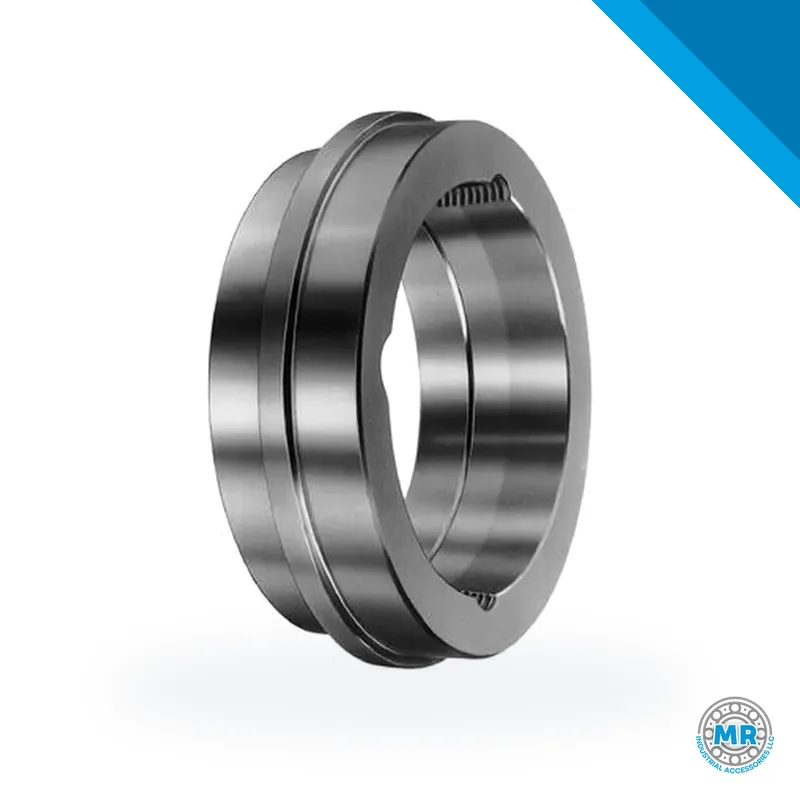

DODGE 6F25C hub

DODGE 6F25C belongs to hub, part of our Power transmission range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for 6F25C and any equivalents.

The DODGE F series hub carries the taper bushing that locks a pulley or gear onto a shaft, giving a secure fit that can still be released when service is needed. It suits drives where torque has to be transmitted and the fixing element may later be adjusted or swapped without harming the shaft. MR Industrial Accessories LLC supplies this hub to customers throughout the United States and Latin America.

Reading the part number helps you order the right piece. Take 6F25C: the leading digit gives the hub size, F marks the family, the next number points to the taper bushing size or type, and the last letter shows the mounting variant. So 6F25C and 8F25C use the same bushing and variant but differ in hub size. Send the code exactly as stamped on the part or drawing, and the team will match it to your shaft dimensions.

These hubs turn up on belt and roller conveyors, bucket elevators, mixers, pumps and industrial fans. In food processing, cement, mining and aggregate plants, they are common on gearboxes and transmission shafts that see variable load and regular maintenance. They also appear on material handling equipment where a replacement is made at the machine without stripping the whole assembly.

Selection comes down to the bushing taper, shaft diameter, hub length and fastening method. During mounting, clean the tapered surfaces, look for burrs or dents, and tighten the screws in even, progressive steps until you reach the specified torque. A light lubricant on the thread and taper supports a uniform fit and makes later removal easier.

Interchangeability between hubs and taper bushings follows catalog number plus taper and shaft dimensions, not the brand name. A hub from another source can often stand in for the original when taper, diameter and screw pitch line up. If you are unsure, send the shaft and bushing measurements or the old part number, and the team will point you to a compatible option.

To replace a DODGE F series hub or build the unit with its taper bushing, message us on WhatsApp with the part number or shaft dimensions. MR Industrial Accessories LLC will quote the reference and advise on mounting so the drive stays aligned and runs without play.
