DBH 9701 radial shaft seal — 70 x 112 x 10/18

DBH 9701 belongs to radial shaft seal, part of our Seals range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for 9701 and any equivalents.

The DBH 9701 is a radial shaft seal with an A 295 profile, used to keep lubricant in and contaminants out where a rotating shaft passes through a fixed housing. It measures 70 mm at the shaft, 112 mm at the housing, and has a stepped height of 10.00/18.00 mm, so it fits cavities with limited axial depth. MR Industrial Accessories supplies it as part of its seals and oil seals line for industrial maintenance.

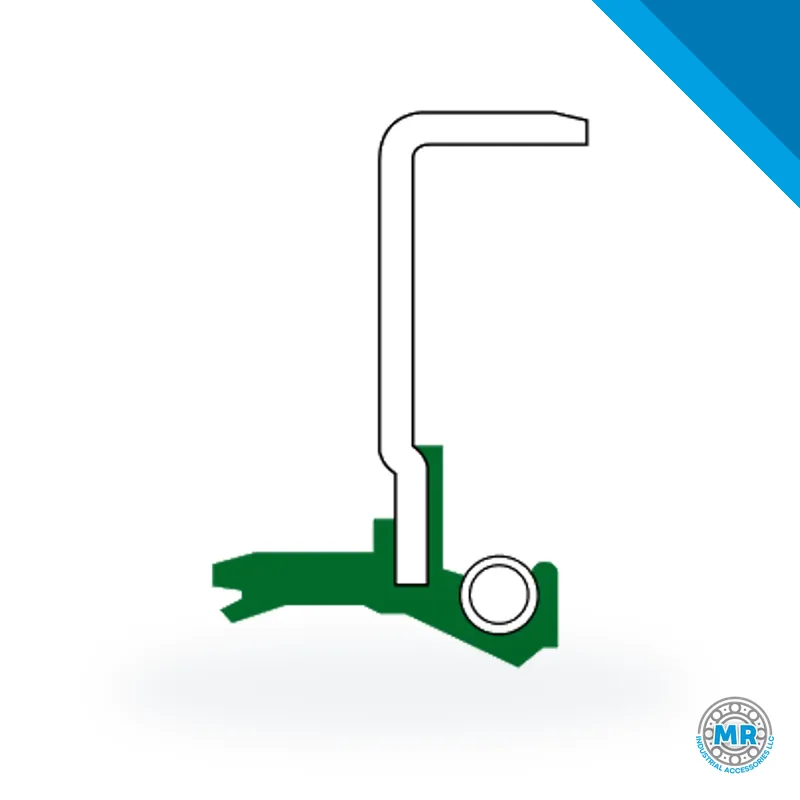

Dimensions to check before ordering: shaft 70 mm, housing 112 mm, height 10.00/18.00 mm. The A 295 designation describes a lip profile with a reinforced body, and the two-step height means the lower section seats in the bore while the taller section carries the lip, which suits housings with a shoulder. The elastomer resists mineral oils and greases, and an internal metal case gives the seal its structure.

You will find this seal in gearboxes, centrifugal pumps, electric motors, conveyor rollers, and power transmission equipment, as well as in machine tools, compressors, and hydraulic systems where oil must stay contained and dust or water kept out. Its size makes it common on medium and large machinery in process plants, mining, cement, and material handling.

When matching a replacement, confirm the shaft and housing diameters and make sure the available depth takes the 10/18 mm profile. Install on a clean shaft with no burrs or marks, lubricate the lip first, and press with a tool that contacts the outer ring rather than the lip. For high peripheral speed or elevated temperature, contact MR to review the lip material.

If you need an equivalent, send the code 9701 or the three dimensions of the original seal: shaft, housing, and height. From there we can search within the DBH line or other brands we carry, and advise you if the housing shoulder or the original configuration is different. More detail on your application means a more accurate proposal.

To request a quote for the DBH 9701 oil seal, message us on WhatsApp at MR Industrial Accessories with the code. We will come back with the technical information you need to keep the maintenance moving.
