DBH 6135 radial shaft seal — 28.5 x 39.65 x 7.8
- Brand
- DBH
- Category
- Seals
- Subcategory
- Radial shaft seals
We reply promptly.
Tell us the quantity you need and request a quote by WhatsApp or email.
Can't find the exact model? Tell us the part number or model you need. We'll track it down and quote it, whether or not it appears in our catalog.
Description
DBH 6135 belongs to radial shaft seal, part of our Seals range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for 6135 and any equivalents.

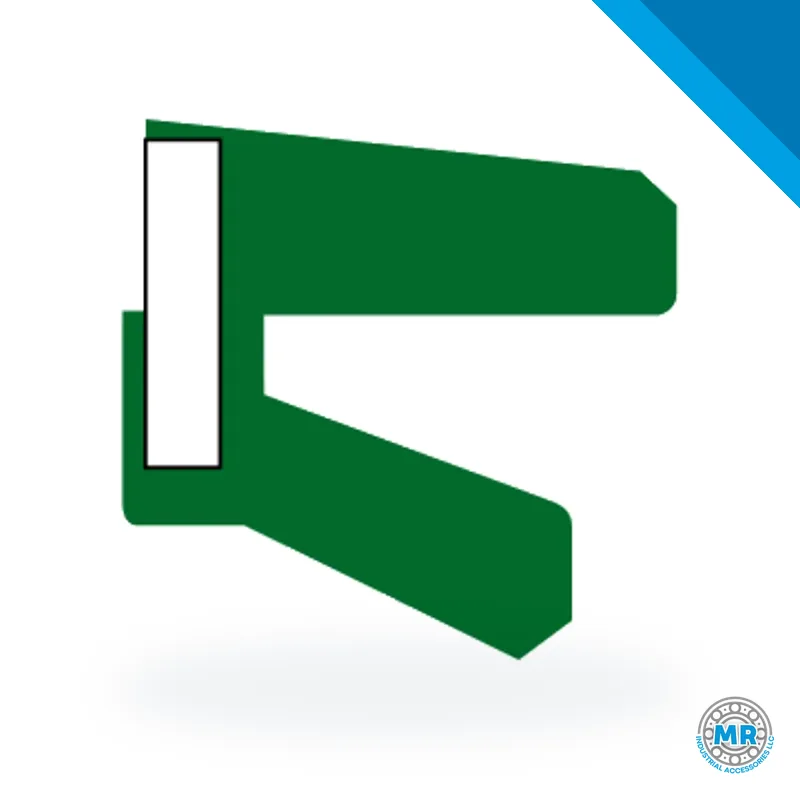

The DBH 6135 is a radial shaft seal that keeps lubricant in and contaminants out of rotating shaft assemblies. It is identified by the code 6135 and built to the A 017 design. The seal fits a 28.50 mm shaft, a 39.65 mm housing bore, and has a 7.80 mm height. MR Industrial Accessories supplies this seal and can help you confirm the right replacement for your equipment.
This lip seal is used where a shaft turns inside a fixed housing. The A 017 design refers to a single lip with a spring, a common configuration for lubricated rotating shafts. Its role is to hold oil or grease in place and to block dust, water, and other particles from entering the bearing or gear area.
Typical installations include gearboxes, pumps, electric motors, conveyor rollers, and other transmission equipment. By protecting bearings and gears, the seal helps reduce maintenance and supports the service life of the assembly. You will find this type of component in industrial plants, factories, and agricultural machinery.
When selecting a replacement, match the three dimensions to your equipment: shaft 28.50 mm, housing bore 39.65 mm, and height 7.80 mm. Operating speed, temperature, and the lubricant in use also affect the choice of lip material. Because the A 017 design can vary between manufacturers, check the technical data sheet before installation. Proper tooling and pre-lubrication of the lip are important for effective sealing.
If you need an equivalent to the DBH 6135, send the code 6135, the dimensions 28.50 x 39.65 x 7.80 mm, or a photo of the part. MR Industrial Accessories can suggest alternatives from our seal line and help you choose. Quotes are handled via WhatsApp or email, and our team replies promptly.
To request a quote, contact us with the code 6135 or the dimensions. We can also advise if a different design or lip material is needed for your working conditions.
Dimensions
- Shaft (d)
- 28.5mm
- Housing bore (D)
- 39.65mm
- Height (h)
- 7.80mm
- Design
- A 017
Frequently asked questions
- What are the dimensions of the DBH 6135 oil seal?
- The DBH 6135 oil seal has a shaft diameter of 28.50 mm, a housing bore of 39.65 mm, and a height of 7.80 mm. It corresponds to the A 017 design. Always verify the technical data sheet and inspect the shaft before replacement.
- How do I request a quote for the DBH 6135 oil seal?
- Send the code 6135 or the dimensions via WhatsApp or email to MR Industrial Accessories. We will reply promptly with a quote and can advise on the application. You can also ask about equivalent sizes or alternative designs.
- What applications does this radial shaft seal have?
- It is used in gearboxes, pumps, motors, rollers, and transmission equipment to retain lubricant and exclude contaminants. It suits rotating shafts with lubrication. Selection depends on speed, temperature, and lubricant type.
