DBH 5209 radial shaft seal — 42 x 56 x 8

DBH 5209 belongs to radial shaft seal, part of our Seals range. Tell us how many you need by WhatsApp or email and we'll get back to you promptly with a quote for 5209 and any equivalents.

The DBH 5209 is a radial shaft seal that keeps oil or grease contained where a rotating shaft passes through a housing. Its designation gives the three key measurements: shaft 42.00 mm, housing 56.00 mm and height 8.00 mm, and it follows design A 136. The outer body is pressed into the housing while the lip rides against the shaft. As a wear part, it eventually lets lubricant escape, which is the signal to plan a replacement.

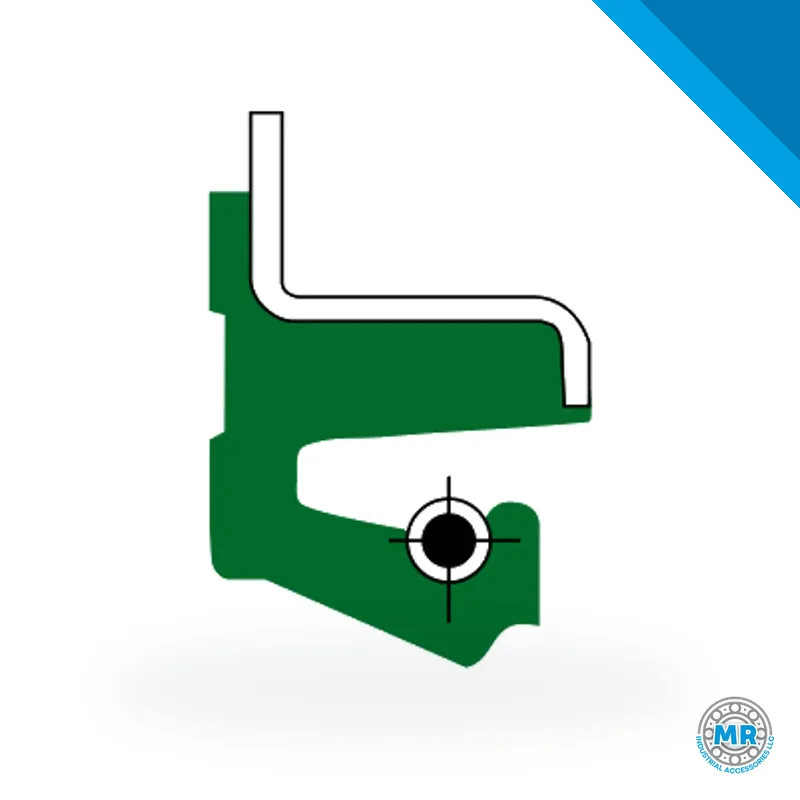

This seal is a single-lip radial shaft seal. The 42.00 mm figure refers to the shaft diameter (d), the 56.00 mm figure to the housing bore (D) and the 8.00 mm figure to the height (h). Design A 136 describes how the lip and the metal case are shaped. The elastomer lip does the sealing work, and an internal spring keeps it pressed against the shaft. The case holds the seal firmly in the housing.

Typical locations include gearboxes, pumps, electric motors, transmission shafts and process equipment where a shaft turns inside a housing and lubricant has to stay in. In dusty or wet surroundings the same seal also keeps contaminants out. In day-to-day maintenance, a hardening or worn seal shows up as an oil leak, and replacing it early protects the bearing and the shaft surface.

When selecting a replacement, confirm the shaft diameter, housing bore and height against the seal being removed. Inspect the shaft as well: wear, scoring or a visible track under the lip will prevent a proper seal, so repair the shaft or fit a wear sleeve. Install the new seal with the lip lubricated using the same oil or grease as the application, keep it square to the shaft, and apply force only to the outer ring, never to the lip. Remove any burrs from the housing first.

To receive a quote for the 5209, send the shaft diameter, housing bore and height you measured, and a photo of the old seal if available. With those details we can locate a match in the DBH line or in another brand we supply, and check design A 136 against the manufacturer's data to confirm the lip and case geometry suits your equipment.

DBH is one of the seal and oil seal brands MR Industrial Accessories LLC supplies. If you already have part number 5209, send it by WhatsApp or email with the quantity and we will prepare your quote. If the size is uncertain, contact us anyway: the shaft and housing dimensions are enough for us to help identify the right seal.
